紫外光源
紫外光源
- 详细介绍

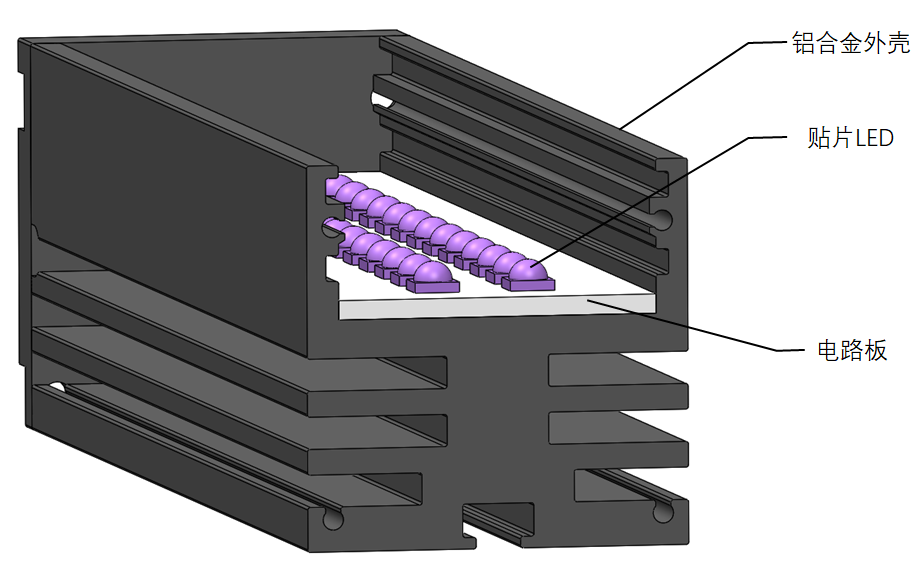

光源说明 ●紫外波长365nm,370nm,375nm,389nm等可选。 ●可以制定各种形状光源，例如：环形光源，条形光源，线形光源，点光源等。 | 产品命名规则 | |
产品特点 ◆特殊波长LED，高亮度 ◆恒流驱动，输出稳定 ◆光源类型自由定制 | 应用领域 ◆涂胶质量检测 ◆UV固化 ◆萤光物质检测 | |

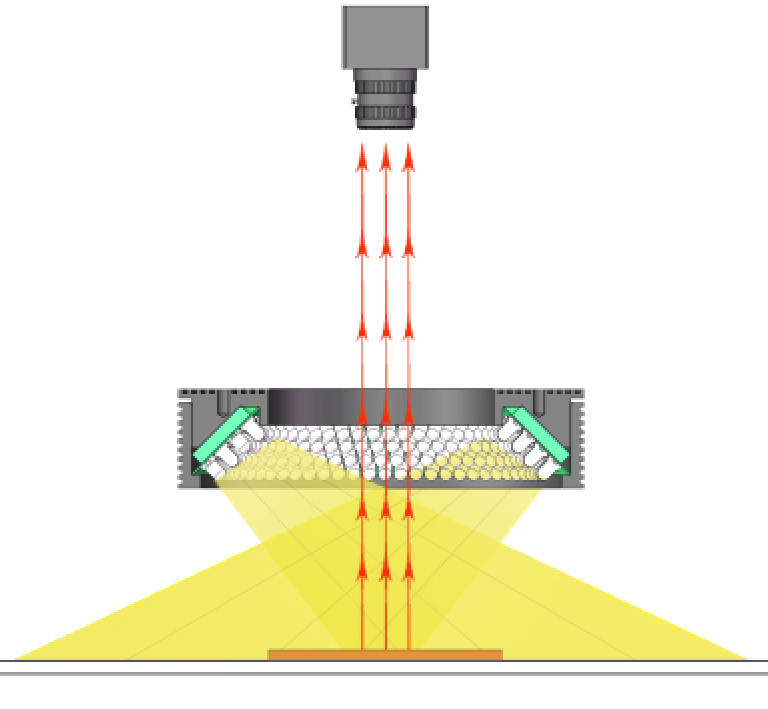

光路简图
| ||
案 例
产品系列选型表
| 紫外光源 | ||||||
| 类型 | 序号 | 产品类型 | 可做颜色 | 适用电压 | 功率 | 下载 |
| HL-R | 1 | HL-R0-70-2-UV | ● | DC24V | 3.36 | |
| 2 | HL-R0-90-3-UV | ● | DC24V | 6.24 | ||
| 3 | HL-R0-120-4-UV | ● | DC24V | 9.6 | ||
| 4 | HL-R30-70-2-UV | ● | DC24V | 2.88 |  HL-R30-70-2-UV.pdf | |
| 5 | HL-R30-120-4-UV | ● | DC24V | 9.6 | ||
| HL-LN | 6 | HL-LN-40-UV | ● | DC24V | 0.96 | |
| 7 | HL-LN-60-UV | ● | DC24V | 1.44 | ||
| 8 | HL-LN-80-UV | ● | DC24V | 1.92 | ||
| 9 | HL-LN-100-UV | ● | DC24V | 2.4 | ||
| 10 | HL-LN-120-UV | ● | DC24V | 2.88 | ||
| 11 | HL-LN-140-UV | ● | DC24V | 3.36 | ||
| 12 | HL-LN-160-UV | ● | DC24V | 3.84 | ||
| 13 | HL-LN-180-UV | ● | DC24V | 4.32 | ||
| 14 | HL-LN-200-UV | ● | DC24V | 4.8 | ||
| 15 | HL-LN-220-UV | ● | DC24V | 5.28 | ||
| 16 | HL-LN-240-UV | ● | DC24V | 5.76 | ||
| 17 | HL-LN-260-UV | ● | DC24V | 6.24 | ||
| 18 | HL-LN-280-UV | ● | DC24V | 6.72 | ||
| 19 | HL-LN-300-UV | ● | DC24V | 7.2 | ||
| 20 | HL-LN-N*20-UV | ● | DC24V | N*0.48 | ||
| HL-LW | 21 | HL-LW-38-UV | ● | DC24V | 1.44 | |
| 22 | HL-LW-50-UV | ● | DC24V | 1.92 | ||
| 23 | HL-LW-63-UV | ● | DC24V | 2.4 | ||
| 24 | HL-LW-75-UV | ● | DC24V | 2.88 | ||
| 25 | HL-LW-88-UV | ● | DC24V | 3.36 | ||
| 26 | HL-LW-100-UV | ● | DC24V | 3.84 | ||
| 27 | HL-LW-113-UV | ● | DC24V | 4.32 | ||
| 28 | HL-LW-125-UV | ● | DC24V | 4.8 | ||
| 29 | HL-LW-138-UV | ● | DC24V | 5.28 | ||
| 30 | HL-LW-150-UV | ● | DC24V | 5.76 | ||
| 31 | HL-LW-163-UV | ● | DC24V | 6.24 | ||
| 32 | HL-LW-175-UV | ● | DC24V | 6.72 | ||
| 33 | HL-LW-188-UV | ● | DC24V | 7.2 | ||
| 34 | HL-LW-200-UV | ● | DC24V | 7.68 | ||
| 35 | HL-LW-300-UV | ● | DC24V | 11.52 | ||
| 36 | HL-LW-N*25-UV | ● | DC24V | N*0.96 | ||
| 37 | HL-LW-(N*25+13)-UV | ● | DC24V | N*0.96+0.48 | ||
| HL-HL | 38 | HL-HL-50-UV | ● | DC24V | 9.6 | |
| 39 | HL-HL-100-UV | ● | DC24V | 19.2 | ||
| 40 | HL-HL-150-UV | ● | DC24V | 21.6 | ||
| 41 | HL-HL-200-UV | ● | DC24V | 28.8 | ||
| 42 | HL-HL-300-UV | ● | DC24V | 43.2 | ||
| 43 | HL-HL-N*50-UV | ● | DC24V | |||
| 44 | HL-HL18-50-UV | ● | DC24V | 9.6 | ||
| 45 | HL-HL18-100-UV | ● | DC24V | 19.2 | ||
| 46 | HL-HL18-150-UV | ● | DC24V | 21.6 | ||
| 47 | HL-HL18-200-UV | ● | DC24V | 28.8 | ||
| 48 | HL-HL18-300-UV | ● | DC24V | 43.2 | ||
| 49 | HL-HL18-N*50-UV | ● | DC24V | |||
| 50 | HL-HL25-50-UV | ● | DC24V | 9.6 | ||
| 51 | HL-HL25-100-UV | ● | DC24V | 19.2 | ||
| 52 | HL-HL25-150-UV | ● | DC24V | 21.6 | ||
| 53 | HL-HL25-200-UV | ● | DC24V | 28.8 | ||
| 54 | HL-HL25-300-UV | ● | DC24V | 43.2 | ||
| 55 | HL-HL25-N*50-UV | ● | DC24V | |||
