背光源

光源说明

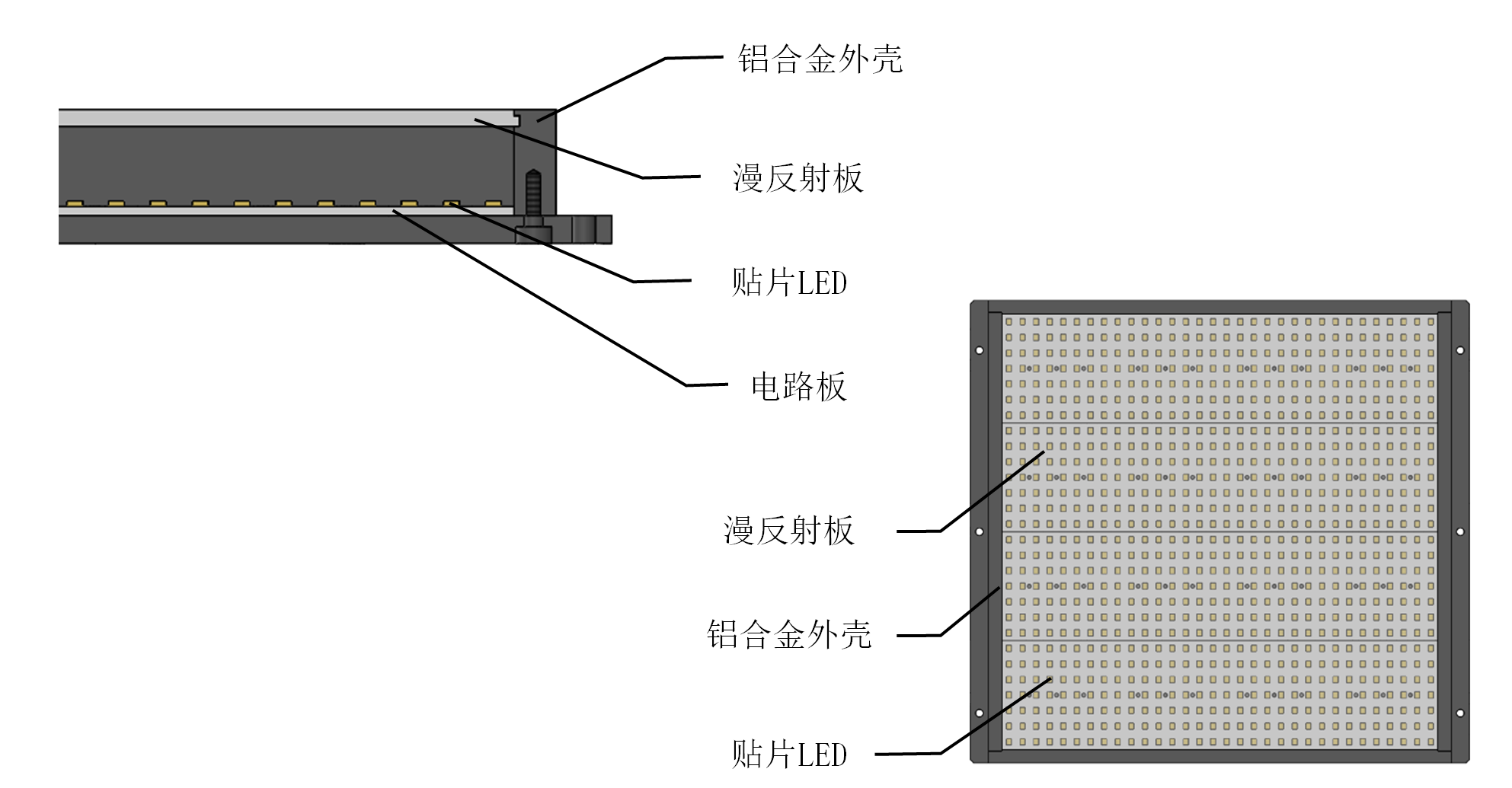

●背光源系列，采用贴片LED，经过设计优化，均匀排布在光源的底面，经过高透光性漫反射材料，形成均匀的发光区域。实现对轮廓，外观等精准成像；

●LED颗粒贴合在铝基板上，与外壳无缝接触，导热速度快；

●对光学结构和透光结构优化处理后，在厚度做到16mm的情况下，仍然能够达到很高的亮度。

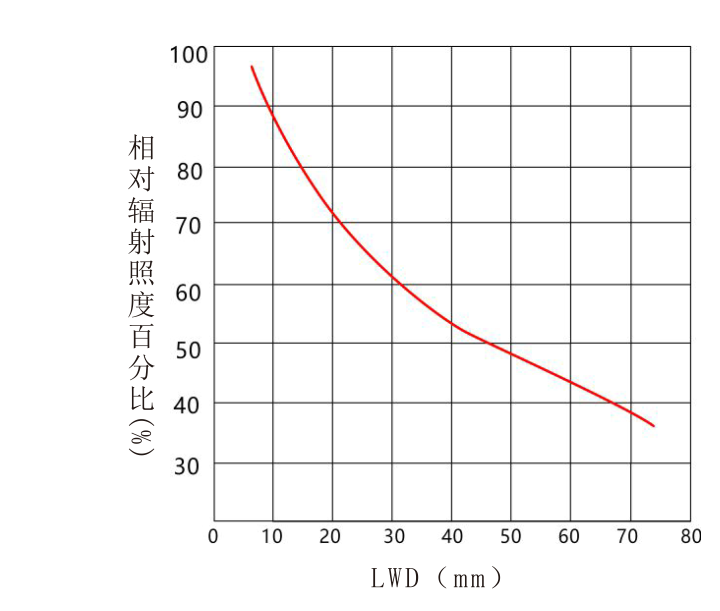

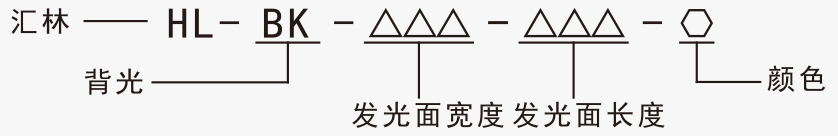

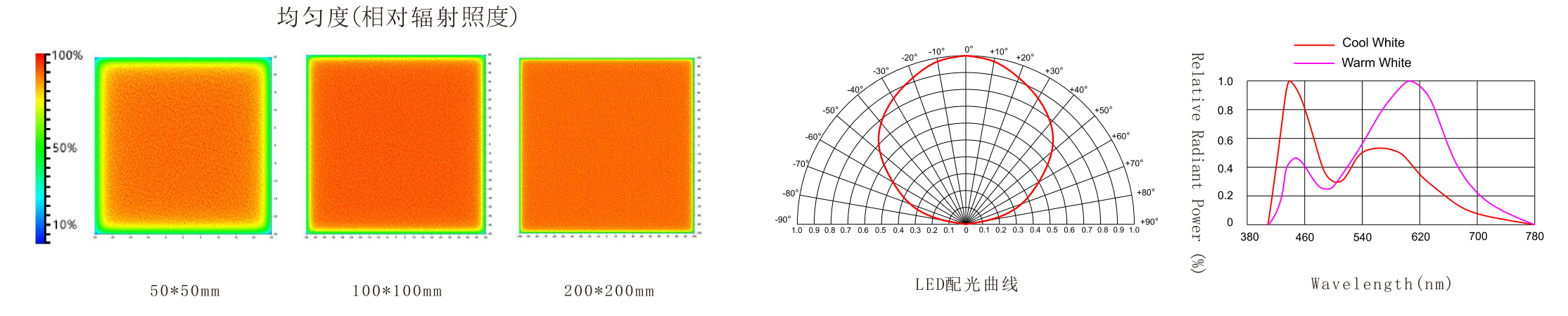

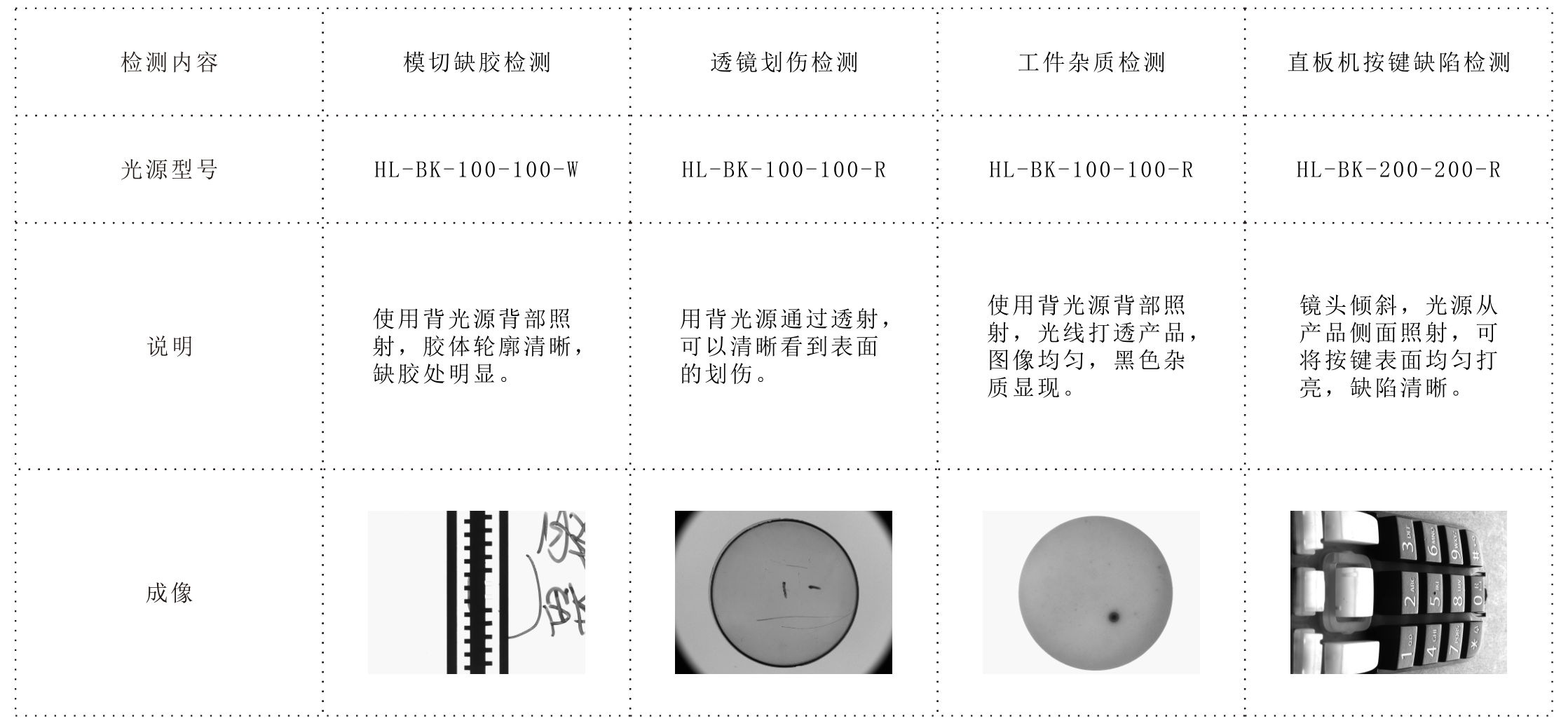

   产品系列选型表

背光源
类型	序号	产品类型	可做颜色	适用电压	功率(W)	下载
HL-BK	1	HL-BK-25-25	●●/●●◎	DC24V	1.92	HL-BK-25-25.pdf
	2	HL-BK-25-50	●●/●●◎	DC24V	1.92/2.88	HL-BK-25-50.pdf
	3	HL-BK-35-35	●●/●●◎	DC24V	2.4/2.88	HL-BK-35-35.pdf
	4	HL-BK-35-70	●●/●●◎	DC24V	3.6/4.32	HL-BK-35-70.pdf
	5	HL-BK-40-40	●●/●●◎	DC24V	2.16/2.88	HL-BK-40-40.pdf
	6	HL-BK-40-60	●●/●●◎	DC24V	3.24/4.32	HL-BK-40-60.pdf
	7	HL-BK-40-80	●●/●●◎	DC24V	4.32/5.76	HL-BK-40-80.pdf
	8	HL-BK-50-50	●●/●●◎	DC24V	2.16/2.88	HL-BK-50-50.pdf
	9	HL-BK-50-75	●●/●●◎	DC24V	3.24/4.32	HL-BK-50-75.pdf
	10	HL-BK-50-100	●●/●●◎	DC24V	4.32/5.76	HL-BK-50-100.pdf
	11	HL-BK-50-125	●●/●●◎	DC24V	5.4/7.2	HL-BK-50-125.pdf
	12	HL-BK-50-200	●●/●●◎	DC24V	8.64/11.52	HL-BK-50-200.pdf
	13	HL-BK-60-60	●●/●●◎	DC24V	4.32/6.48	HL-BK-60-60.pdf
	14	HL-BK-60-90	●●/●●◎	DC24V	6.48/9.6	HL-BK-60-90.pdf
	15	HL-BK-60-120	●●/●●◎	DC24V	8.64/12.96	HL-BK-60-120.pdf
	16	HL-BK-75-75	●●/●●◎	DC24V	4.32/6.48	HL-BK-75-75.pdf
	17	HL-BK-75-100	●●/●●◎	DC24V	5.76/8.64	HL-BK-75-100.pdf
	18	HL-BK-80-80	●●/●●◎	DC24V	4.32/6.48	HL-BK-80-80.pdf
	19	HL-BK-80-120	●●/●●◎	DC24V	6.48/9.6	HL-BK-80-120.pdf
	20	HL-BK-80-160	●●/●●◎	DC24V	8.64/12.96	HL-BK-80-160.pdf
	21	HL-BK-100-100	●●/●●◎	DC24V	7.2/9.6	HL-BK-100-100.pdf
	22	HL-BK-100-150	●●/●●◎	DC24V	10.8./14.4	HL-BK-100-150.pdf
	23	HL-BK-100-175	●●/●●◎	DC24V	12/15.6	HL-BK-100-175.pdf
	24	HL-BK-100-200	●●/●●◎	DC24V	13.4/18	HL-BK-100-200.pdf
	25	HL-BK-100-300	●●/●●◎	DC24V	17.28/23.04	HL-BK-100-300.pdf
	26	HL-BK-120-120	●●/●●◎	DC24V	7.2/9.6	HL-BK-120-120.pdf
	27	HL-BK-120-180	●●/●●◎	DC24V	10.8/14.4
	28	HL-BK-125-150	●●/●●◎	DC24V	12/15.6	HL-BK-125-150.pdf
	29	HL-BK-125-200	●●/●●◎	DC24V	14.4/19.2	HL-BK-125-200.pdf
	30	HL-BK-150-150	●●/●●◎	DC24V	12.96/17.28	HL-BK-150-150.pdf
	31	HL-BK-150-200	●●/●●◎	DC24V	17.28/23.04	HL-BK-150-200.pdf
	32	HL-BK-150-250	●●/●●◎	DC24V	21.6/28.8	HL-BK-150-250.pdf
	33	HL-BK-150-275	●●/●●◎	DC24V	24/31.2	HL-BK-150-275.pdf
	34	HL-BK-150-300	●●/●●◎	DC24V	26.4/33.6	HL-BK-150-300.pdf
	35	HL-BK-150-350	●●/●●◎	DC24V	28.8/38.4	HL-BK-150-350.pdf
	36	HL-BK-150-400	●●/●●◎	DC24V	33.6/44.4	HL-BK-150-400.pdf
	37	HL-BK-160-160	●●/●●◎	DC24V	11.52/17.28	HL-BK-160-160.pdf
	38	HL-BK-160-240	●●/●●◎	DC24V	17.28/25.92	HL-BK-160-240.pdf
	39	HL-BK-160-320	●●/●●◎	DC24V	21.6/33.6	HL-BK-160-320.pdf
	40	HL-BK-200-200	●●/●●◎	DC24V	21.6/28.8	HL-BK-200-200.pdf
	41	HL-BK-200-300	●●/●●◎	DC24V	33.6/44.4	HL-BK-200-300.pdf
	42	HL-BK-200-400	●●/●●◎	DC24V	40.8/55.2	HL-BK-200-400.pdf
	43	HL-BK-200-600	●●/●●◎	DC24V	57.6/76.8	HL-BK-200-600.pdf
	44	HL-BK-240-240	●●/●●◎	DC24V	26.4/38.4	HL-BK-240-240.pdf
	45	HL-BK-240-320	●●/●●◎	DC24V	33.6/48	HL-BK-240-320.pdf
	46	HL-BK-240-480	●●/●●◎	DC24V	45.6/69.6	HL-BK-240-480.pdf
	47	HL-BK-250-250	●●/●●◎	DC24V	36/48	HL-BK-250-250.pdf
	48	HL-BK-250-300	●●/●●◎	DC24V	38.4/50.4	HL-BK-250-300.pdf
	49	HL-BK-250-400	●●/●●◎	DC24V	50.4/67.2	HL-BK-250-400.pdf
	50	HL-BK-250-500	●●/●●◎	DC24V	62.4/81.6	HL-BK-250-500.pdf
	51	HL-BK-300-300	●●/●●◎	DC24V	45.6/62.4	HL-BK-300-300.pdf
	52	HL-BK-300-400	●●/●●◎	DC24V	62.4/84	HL-BK-300-400.pdf
	53	HL-BK-300-500	●●/●●◎	DC24V	72/96	HL-BK-300-500.pdf
	54	HL-BK-300-600	●●/●●◎	DC24V	84/110.4	HL-BK-300-600.pdf
	55	HL-BK-400-400	●●/●●◎	DC24V	67.2/115.2	HL-BK-400-400.pdf
	56	HL-BK-400-600	●●/●●◎	DC24V	100.8/172.8	HL-BK-400-600.pdf
	57	HL-BK-600-600	●●/●●◎	DC24V	129.6/192	HL-BK-600-600.pdf
	58	HL-BK-600-1200	●●/●●◎	DC24V	240/360	HL-BK-600-1200.pdf
	59	HL-BK-X-Y	●●/●●◎	DC24V
